ASI 2015 update 2: take me to the other side

During the melting season I'm writing (bi-)weekly updates on the current situation with regards to Arctic sea ice (ASI). Central to these updates are the daily Cryosphere Today sea ice area (SIA) and IJIS sea ice extent (SIE) numbers, which I compare to data from the 2005-2014 period (NSIDC has a good explanation of sea ice extent and area in their FAQ). I also look at other things like regional sea ice area, compactness, temperature and weather forecasts, anything of particular interest.

The animation on the right consists of NSIDC
sea ice concentration maps, one for each ASI update.

Check out the Arctic Sea Ice Graphs website (ASIG)
for daily updated graphs, maps, live webcam images and
the Arctic Sea Ice Forum (ASIF) for detailed discussions.

June 4th 2015

Usually, not always, if one thing is going on in the Arctic, the opposite is happening on the other side. In fact, something like it - albeit in the longer term - is mentioned in the latest NSIDC monthly summary:

[A] new study shows that when winter sea ice concentrations are above average in the East Greenland, Barents and Kara seas, ice concentrations tend to be below average in the Bering Sea. This spatial pattern of anomalies linking the North Atlantic and North Pacific is related to the sea level pressure pattern that drives surface winds and their associated movement of atmospheric heat. These conditions are in turn linked to cooler or warmer than average sea surface temperatures that provide memory, influencing regional sea ice concentrations the following autumn. Thus, while the atmosphere is critical in setting the spatial patterns of sea ice variability, the ocean provides the memory for reemergence.

As I wrote two weeks ago in ASI 2015 update 1, the melting season started early in the Beaufort and Chukchi Seas, but while the multi-year ice was getting its first beating of the melting season, the ice in the East Siberian and Laptev Seas was still in deep freeze. This resulted in relatively thick ice (see the latest PIOMAS update released earlier today) and a delay when it comes to melt onset in that quarter of the Arctic.

But as always, things have started to flip, and the action is being transferred to the other side. Below I'll explain the details and the forecast for next week. Also be sure to read RobertScribbler's take on the matter when you're done reading this update, as he also covers snow cover, which, to quote from this article in the Washington Post, "unlike sea ice, gets no attention".

Sea ice area (SIA)

Although Cryosphere Today has been updating on a daily basis again, I've taken the liberty of using the latest two pre-calculated data points by Wipneus so that I can show the June CT SIA map:The 2015 trend line is clearly in the bottom half of the pack, but it refuses to follow the order that has been clear on sea ice extent graphs for several weeks now, as seen below.

Sea ice extent (SIE)

IJIS SIE data is being reported by the Japanese Arctic Data archive System now (check out their website, they have some great visual maps), and here's how things look right now:The 2015 trend line is well clear of all the other trend lines. In fact, I had to adjust my May graph when I came back from my holiday to accommodate it. It will be interesting to see whether the trend line can keep up this tempo throughout this crucial month.

Cryosphere Today area per IJIS extent (CAPIE)

When SIE drops relatively fast, and SIA less so, CAPIE naturally goes down slower. Remember, this percentage is calculated by dividing SIA numbers by SIE numbers. Because open water between floes are counted for SIA, but not for SIE, it will always be lower. Added to that, melt ponds fool satellite sensors into thinking there is open water where there is none. Open water in grids gets counted as such for sea ice area, but for sea ice extent there has to be a lot of open water for all of the grid to be counted as open water. This explains why there are two different ways of measuring the amount of sea ice based on sea ice concentration data (read the CAPIE segment in ASI 2014 update 2 for a more thorough explanation).

So far this year CAPIE has been relatively high, as can be seen on the graph (and also on the compactness graph that Wipneus updates, using more sophisticated data):

The trend line has started to drop with CT SIA noting a couple of bigger drops, but it's still higher than all other years in the 2006-2015 record. This means that the ice pack is either very compact, without much of a mix of ice floes and open water in the marginal ice zones, or that there is not much melt ponding going on. It's probably a combination of the two, but given the assumed importance of melt ponds for preconditioning the ice pack for the rest of the melting season, this might be a first sign that it won't be easy for the 2015 melting season to force itself into the top 3.

But June is the month when most of this melting momentum is built up, so it's too early to tell.

Regional SIE and SIA

This year I'm using the regional SIE and SIA graphs on the updated Arctic Sea Ice Graphs website, as provided by commenter and amateur Arctic expert Wipneus, who also sends me custom-made maps showing the most interesting region of the fortnight.

The regional map of the week is of Hudson Bay, as that's where a lot of action has been taking place in the past two weeks (red = less ice than two weeks ago, blue = more ice than two weeks ago):

As can be seen on the Uni Bremen sea ice concentration maps comparison page it's unusual for western Hudson Bay to clear out so early and fast. This is one of the main reasons that IJIS SIE is so much lower than other years, which means that the decline rate could stall when the Hudson is clear of ice. But other regions are of interest as well, with Hudson Bay on top:

The effect of the high temps and insolation of the past couple of weeks can clearly be seen on the Beaufort and Kara Sea maps, with the Chukchi going down fast as a prolongation of the rapid clearing of the Bering Sea.

Here are the regions that are acting as a counter-balance, the East Siberian and Laptev Sea as mentioned earlier, but also a Greenland Sea with little sea ice is a sign of little Fram Strait export (counter-intuitive, I know), as we saw during the past two melting seasons:

Again, all these regional graphs and more can be followed on the ASIG.

Weather conditions

As usual we look at sea level pressure (SLP), followed by air and sea surface temperatures. First the two-week animation of Danish Meteorological Institute SLP images:

It's clear how high pressure areas opened the windows on the Beaufort and Chukchi Seas, letting the Sun shine in. But without concomitant low pressure areas on the other side there hasn't been all that much wind and thus movement, just as we saw during all of the 2014 melting season. Nevertheless, some preconditioning has been taking place in a zone that's rife with thicker, multi-year ice.

In the final frames of the animation a big cyclone is moving in via the Barentsz Sea. Let's check out the 6 day forecast according to the ECMWF model to see what's in store (click for a larger version):

The cyclone is going to move over the centre of the Arctic and stay put for a couple of days. Not particularly low in pressure, but pretty big nonetheless. This will make large parts of the Arctic cloudy, but at the same time cause winds that might pull at the sea ice that hugs the Siberian coast, and suck in warm air from the Siberian mainland that is also going to obliterate the snow cover there. Usually this kind of weather causes the rate of decline to slow down, but further losses in Hudson Bay where the Sun keeps shining for a while longer, might keep the rate stable.

Air temperatures play an important role as well. As said, May started out cold, but warmed up towards the latter part of the month, as can be seen on the DMI 80N temperature graph where ultra-low temps in the region above 80° slowly changed into the above average temperatures we see now, last seen in 2011 and 2012:

Here's a short animation of NOAA/ESRL 1-day anomaly maps showing the changes compared to two weeks ago:

The Alaska 'heat wave' has finally dissipated, with a lot of heat popping up in Siberia now. Here's what GFS temperature forecast maps provided by the excellent Climate Reanalyzer website are showing for the coming 7 days:

Above freezing temperatures, almost Arctic-wide, with Eastern Siberia heating up big time (again, read RobertScribbler) as well as the land masses surrounding Hudson Bay. It's going to be interesting to see how this all plays out.

Sea surface temperature anomalies on the Atlantic side of the Arctic are increasing some more, especially in the Barentsz Sea, but there's some deep red showing up in Bering Strait as well, all well ahead of last year:

Conclusion

The Arctic has stopped being cold and is projected to stay warm for the coming week. At the same time it seems there is not much melt ponding happening, which is a crucial factor in building up melting momentum for the rest of the melting season. Extent numbers are very low, and area is catching up, because of early, fast and continued melt in Beaufort, Chukchi, Kara and Hudson, but on the other side the East Siberian and Laptev Seas are still asleep. That's where the action is moving to now, so let's see how many thousands of square kilometres of melt ponds can be squeezed in during Junction June.

Later this week I'm going to try and have a closer look at weather conditions in May 2015 compared to other years. In the meantime, I can highly recommend this blog post by Chris Reynolds on his Dosbat blog that discusses what's been going on this past May across the Arctic: Four Dipoles.

Enjoy the Arctic sea ice, it's the only Arctic sea ice you've got.

Comments

[Neven]

For those who like that kind of thing (I know I do), I have opened two polls on the Arctic Sea Ice Forum, one for the CT SIA daily minimum and one for the NSIDC SIE September minimum (monthly average).

They're at the top of this list of threads here.

[navegante]

CAPIE values should drop during the cyclone

http://goo.gl/muUvfj

Also, any thought on the potential Ekman pumping due to this storm, or not relevant at this time? I am no expert at all

[Neven]

I don't think it's relevant right now, navegante. I believe Ekman pumping requires (lots of) open water.

It's not that strong a cyclone anyhow, but large, yes.

[NeilT]

I'm wondering if this is correct... It doesn't look like it from the webcam.

http://seaice.alaska.edu/gi/observatories/barrow_sealevel

[Jim Hunt]

The Barrow ice mass balance buoy is a few miles north of the webcam location, so it's not out of the question. Here's a picture of Barrow beach from May 26th:

http://forum.arctic-sea-ice.net/index.php/topic,1149.msg53090.html#msg53090

You will notice a fair bit of liquid around even then. They are working out the position of the bottom of the ice using the thermistors, which gets tricky once the floe temperature is much as the same as the water underneath it!

[wayne]

There is nothing in science like repetition,
the horizon shifts in High Arctic Canada were captured many many times near Highest latitude point of USA: Barrow Alaska... You can study it in great details thanks to University of Alaska Archives.

http://eh2r.blogspot.ca/2015/06/from-barrow-strait-to-barrow-alaska-sea.html

[Bill Fothergill]

An interesting announcement has recently come from NOAA pertaining to the so-called hiatus.

http://www.ncdc.noaa.gov/news/recent-global-surface-warming-hiatus

[Jim Hunt]

Speaking of which Bill, regular readers of "Tamino" will already be familiar with this graphic graphic of the statistical argument:

https://tamino.wordpress.com/2015/01/20/its-the-trend-stupid-3/

[Jim Hunt]

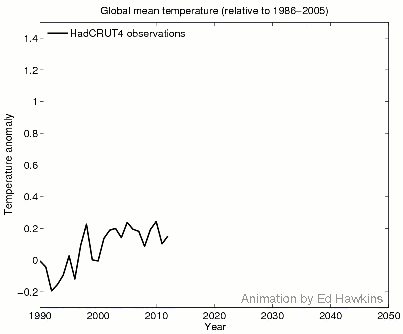

And Richard Betts reminds me of this animation from Ed Hawkins:
