During the melting season I'm writing (bi-)weekly updates on the current situation with regards to Arctic sea ice (ASI). Central to these updates are the daily Cryosphere Today sea ice area (SIA) and IJIS sea ice extent (SIE) numbers, which I compare to data from the 2005-2014 period (NSIDC has a good explanation of sea ice extent and area in their FAQ). I also look at other things like regional sea ice area, compactness, temperature and weather forecasts, anything of particular interest.
The animation on the right consists of NSIDC
sea ice concentration maps, one for each ASI update.
Check out the Arctic Sea Ice Graphs website (ASIG)
for daily updated graphs, maps, live webcam images and
the Arctic Sea Ice Forum (ASIF) for detailed discussions.
July 7th 2015
I wanted to wait for the latest PIOMAS update and do another melt pond analysis for June, but given the current circumstances and the forecast I've decided to squeeze this ASI update in first.
As we've seen in previous ASI updates this melting season hasn't had a flying start, but it hasn't been as slow as 2013 and 2014 either. With extent going low real fast, but area lagging behind, the compactness numbers indicated little melt pond formation and no divergence to speak of. Melt ponds - and to a lesser extent openings within the ice pack - are important because they lower the ice pack's albedo and soak up a lot of sunlight, preconditioning the ice for further melting. This melting momentum, as I call it, can play a decisive role in the latter half of the melting season, trumping weather conditions.
Of course, weather still plays a very significant role in the final outcome of a melting season. This year hasn't seen any substantial preconditioning and is more similar to rebound years 2013 and 2014 than record years 2012, 2007 and 2011. In fact, this year has been very much like last year, in the sense that there is hardly any movement. Very little ice is transported through Fram Strait to the North Atlantic ice graveyard, and there is no compaction or divergence to speak of because of a lack of strong winds. Most of the extent/area decrease is caused by so-called in situ melting, or melting on the spot.
However, there is one big difference compared to last year and that's heat. Despite a very cold start, there have been several outbreaks of warm air over the ice, slowly but radically shifting the balance between extent and area data. The impact is felt on the surface of the ice pack, but doesn't translate directly into a decrease. Not yet. In theory, it should percolate through after a while, especially if the heat persists. And right now the Arctic sea ice pack is undergoing a massive heat wave which shows no signs of letting up.
More on what has happened and what is going to happen below.
Sea ice area (SIA)
Here's the latest Cryosphere Today SIA chart, to which I've added preliminary data as calculated by Wipneus:
Big drops have been alternating with small upticks, keeping the trend line near the upper half of the pack, but below that of 2013 and 2014.
Meanwhile, the spectacular stalling of the 2015 trend line on the SIE graph (based on data reported by the Japanese Arctic Data archive System) has continued:
Back in the beginning of June the 2015 trend line was well below other all the other years in the 2006-2015 period, but now it's almost highest. Average decrease has been extremely low, with just 2 century breaks since May 1st. This may be about to change, as a 112K drop was reported today.
Cryosphere Today area per IJIS extent (CAPIE)
With area dropping relatively fast, and extent stalling, compactness will also drop fast. In these updates I refer to compactness as CAPIE, meaning Cryosphere Today area divided by IJIS extent numbers, a measure that was invented collectively back in 2010, when the Arctic Sea Ice blog first got underway (read the CAPIE segment in ASI 2014 update 2 for a thorough explanation of what CAPIE actually is and what it tells us).
Despite a small uptick CAPIE is very low for the time of year. Because there isn't much divergence and transport happening, we can conclude that there is a lot of melt ponding going on right now. The only question is how much this will add to melting momentum for the remainder of the melting season. This in turn depends on where the melt ponding takes place, and how resistant/thick the ice is there.
Regional SIE and SIA
The regional compactness graphs produced by Wipneus, part of the Regional Graphs page on the ASIG, show us where the melt ponding is taking place:
In the Chukchi Sea, of course, where almost continuous heat is causing so many melt ponds to form that the trend line has fallen off the chart. The neighbouring East Siberian Sea is also affected, and there has been a lot of melt ponding in the Canadian Arctic Archipelago (as discussed in the previous ASI update), with all the leads and channels between the islands filled with bluish ice. This development has greatly increased chances of the Northwest Passage opening up again this year.
Wipneus has sent me these custom-made regional maps that show the changes in the past two weeks (red = less ice than two weeks ago, blue = more ice than two weeks ago) in the Chukchi and ESS:
Two other regions of interest are Hudson Bay and Baffin Bay. The melt has been very slow there this year, but as these regions will melt out eventually, it essentially means that the 2015 melting season has a piggy bank. When this ice goes, area and extent numbers will decrease a bit faster and 2015 will likely drop down closer towards the record years.
Weather conditions
Some of the heat I mentioned in the introduction, reaches the Arctic through the advection of warm air that formed over land masses, but most of it is caused by insolation. Solar radiation reaches the surface when skies are clear, and skies are clear where there is high pressure. With that in mind we look at sea level pressure (SLP) as displayed in this two-week animation of Danish Meteorological Institute SLP images:
This is what I refer to as the neither-fish-nor-flesh atmospheric set-up, where pressure isn't all that high or low. The lack of a pressure gradient leads to air standing still, so to say. And when the air stands still, the ice doesn't move. At the very end of the animation, however, we see a large high pressure system moving in via Greenland.
High time to check out the 6 day forecast according to the ECMWF model to see what's in store (click for a larger version, and go to the ASIG Forecasts page for daily forecasts):
In the last ASI update I said I use Caps Lock sparingly, but I'm going to use it again: This high-pressure area is HUGE, huge in size, huge in high pressure, huge in persistence. In fact, I can't remember many instances of an intense forecast like this one, and I've been watching the Arctic intently for 5 full years now. A HUGE part of the Arctic sea ice pack - and let's not forget the Greenland ice sheet (see this blog post by RobertScribbler) - is getting hit by a solar blast just two weeks after the solstice, and this will last days on end.
But - and there's always a but - given the lack of cyclones and thus a pressure gradient, there still won't be hardly any movement or transport through Fram Strait. It's all happening in situ, just like last year, but with much more heat involved, as can be clearly seen on the DMI 80N temperature graph with the trend line climbing above the average, something we haven't seen since 2012:
Other than the heat in the Central Arctic and the area from East Siberia to Alaska, there are also cold patches near the Kara Sea and Beaufort Sea according to the NOAA/ESRL 1-day anomaly map:
So how about that heat in the coming 7 days? This is what the GFS temperature anomaly forecast maps provided by the excellent Climate Reanalyzer website are showing:
Massive heat spreading all over the place, far into the ice pack. Truly massive. There's no other way to describe it.
This will probably have an effect on sea surface temperature anomalies as well. Compared to two weeks ago there is still a lot of heat on the Pacific side of the Arctic (although in between the anomaly in the Bering Strait decreased substantially, I'm not sure why), with more and more heat being built up on the Atlantic side and in Baffin bay as well:
Conclusion
This melting season so far has been as slow as last year's, with little movement and transport of ice. But this time around there's much more heat in the system. The multi-year ice on the Pacific side of the Arctic has already had it tough so far, but is now suffering a major blow with open skies practically all over the Arctic bringing massive solar radiation and heat to the ice.
Unless weather conditions shift dramatically, I don't see how this year can end up as another rebound. In fact, if this keeps up, the uptick in volume and multi-year ice since 2012 will be obliterated. It is also looking increasingly likely that both the Northwestern Passage and the Northern Sea Route will open up this year.
But I'm getting ahead of myself, it's too soon to be drawing conclusions, with still two full months to go in this melting season. Nonetheless, I think it's safe to say there will be some hefty daily decreases in the coming week, which could be sustained for weeks to come if a lot of melting momentum is built up.
Enjoy the Arctic sea ice, it's the only Arctic sea ice you've got.
Thanks Neven - An unusual and most interesting setup for July and August, when bottom melt really sets in across the Arctic. More from me on that in a bit, but first of all here's the view this morning from the camera that used to be keeping a close eye on IMB Buoy 2015B:
Click the image for a larger version.
The buoy itself is nowhere to be seen, but currently reports its position as 76.45 N, 161.90 W, which I reckon counts as the Central Arctic.
It was even suggested on the forum that smoke from Alaskan wildfires is visible in the distance, and you can certainly see some ripples on the surface of all that open water. More to come from me on that topic too!
Posted by: Jim Hunt | July 07, 2015 at 15:47
Lovely view, barbecue smells, some waves...
Thanks, Jim. :-)
Posted by: Neven | July 07, 2015 at 16:18
So an atypical year, with lots of ice melting in situ but very little export.
@Jim Hunt,
Those wildfires may not be Alaskan. Millions of hectares have been ablaze in Canada too.
http://www.ciffc.ca/index.php?option=com_content&task=view&id=25&Itemid=27
Posted by: Paddy | July 07, 2015 at 16:31
Click through to the forum Neven.
Those "waves" are much bigger now, and the barbecue was a washout!
Posted by: Jim Hunt | July 07, 2015 at 16:46
This high over the Arctic Ocean and Greenland, with what looks like low tendency over the Siberian coast looks more like the typical summer set up of 2007 to 2012. In line with that the UK forecast is for low pressure dominance.
If this develops, it would have the potential to put us in 2007/2011 territory. Maybe lower? Maybe but just to get back down to 2007 would be enough after the last two years.
Posted by: Chris Reynolds | July 07, 2015 at 19:09
Fascinating. Been wondering when/if the very warm global temps we've been seeing over the last year or more would translate into specifically Arctic effects.
The twists and turns of Arctic melt seasons may be kind of slo mo, but they don't stop coming.
Posted by: Kevin McKinney | July 07, 2015 at 21:20
Kevin,
GISTEMP had 2014 as the warmest year on record. Yet it was cold even compared to 1970 to 2000 in the Arctic.
http://4.bp.blogspot.com/-4CI_FUFZ2r0/VZa-BBU96dI/AAAAAAAACOg/QeT_MBYbz2w/s400/Temp%2BN%2Bof%2B80%2Bsfc.png
Posted by: Chris Reynolds | July 07, 2015 at 22:14
I just talked to someone who came back from Kotzebue yesterday. They did some CTD casts in the sound and the thermocline temp was 17C! This is only 2.5 weeks after the ice left!
Posted by: Chase Stoudt | July 07, 2015 at 22:49
Piomas for June has just been published.
May Jun Jul
2007 23.078 19.110 12.038
2008 24.102 20.498 14.061
2009 23.851 19.649 12.733
2010 22.181 17.044 10.153
2011 21.108 16.403 9.457
2012 21.677 15.896 9.177
2013 21.839 17.447 10.446
2014 21.878 17.600 11.880
2015 22.991 18.448
June average now 18,448 km³ and catching up with the trend.
http://haveland.com/share/arctic-death-spiral.jpg
Posted by: Andy Lee Robinson | July 07, 2015 at 22:57
I'll have a PIOMAS update up tomorrow evening or the day after.
Posted by: Neven | July 07, 2015 at 23:04
Yesterday's Aqua/MODIS pass over Alaska -
Note wind direction
Fires and smoke in northern Alaska
http://rapidfire.sci.gsfc.nasa.gov/cgi-bin/imagery/single.cgi?image=Alaska.A2015187.2300.2km.jpgToday's passes :
North of the Bering Strait
http://rapidfire.sci.gsfc.nasa.gov/cgi-bin/imagery/single.cgi?image=crefl1_143.A2015188082500-2015188083000.2km.jpg
North of the Arctic Wild Life Refuge –
http://rapidfire.sci.gsfc.nasa.gov/cgi-bin/imagery/single.cgi?image=crefl2_143.A2015188153500-2015188154000.2km.jpg
Posted by: Colorado Bob | July 08, 2015 at 00:41
I wonder what Jason Box is doing tonight ?
Posted by: Colorado Bob | July 08, 2015 at 00:43
From Climate Central:
Two Maps Show Greenland’s Sudden Melt Season Onset
It appears that Greenland’s melt season is making up for lost time.
After a cool spring kept Greenland’s massive ice sheet mostly solid, a (comparatively) warm late June and early July have turned half the ice sheet’s surface into liquid, well outside the range of normal for this time of year.
http://www.climatecentral.org/news/maps-greenlands-melt-season-19196
Posted by: Colorado Bob | July 08, 2015 at 00:44
@Colorado Bob,
Indeed. With 1.5 million hectares burnt in the USA (mainly Alaska) so far this year and 2.4 million hectares burnt in Canada (principally Saskatchewan but generally all over the north and west of the country), and no end in sight on either side of the border, this looks like a big year for wildfires.
Posted by: Paddy | July 08, 2015 at 02:07
Link to numbers here: http://www.ciffc.ca/rss/report_en
Posted by: Paddy | July 08, 2015 at 02:09
Neven if what you say is true and in general continues thru the melt season it might make for an interesting test year.
I've wondered to what extent dynamical and thermodynamical processes have contributed to ice loss post-2007 (maybe even post-2000). Can heat minus export produce the extreme lows? Is lack of export alone enough to allow for another 'recovery' year? Its not that I dont think a warmer world melts Arctic ice, just that the heat in conjunction with 15years of weather patterns have given us a (substantial?) overshoot on ice loss that warming alone would have done.
There was some recent research that suggested that weather patterns in the Arctic had been unusual since around 2000 (I think compared with 100+ years previous) and that 2013 (and 2014?) represented a reversal of that persistent pattern. And also that those weather patterns (teleconnections?) have had a sizable impact on ice loss.
Posted by: Pete Williamson | July 08, 2015 at 02:11
Seems like 2015 has decided to play catch-up. Jaxa has report two centaury breaks over the last two days (112 and 163).
Posted by: Colin Maycock | July 08, 2015 at 07:05
Sorry – I meant to type “century” (as in one hundred) rather than "centaury" - the plant
Posted by: Colin Maycock | July 08, 2015 at 08:38
Rutgers reports that this year's NH snow cover in June is second lowest on record:
Posted by: Neven | July 08, 2015 at 09:17
"centaury"
Colin, thanks for my continuing education: I had no idea that was the name of a plant.
By any chance, would its aroma be known as "scentaury"? (groan)
Posted by: Bill Fothergill | July 08, 2015 at 09:32

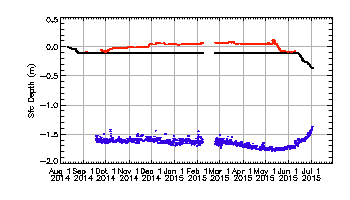

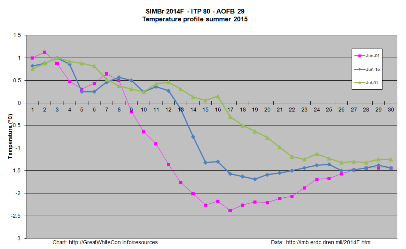

Since Pete has touched on thermodynamics, here's a closer look at what's been happening to the ice underneath ice mass balance buoy 2014F, currently located north of the Beaufort Sea at 75.63 N, 145.75 W. Here's a graph showing the position of the top and bottom of the ice floe, measured using acoustic sounders:
and here's the thermistor profiles showing the temperature within the ice:
Click the images for a closer look.
In approximate terms, half of the ice floe has melted away over the last month.
Posted by: Jim Hunt | July 08, 2015 at 11:21
And the other half will within 2 weeks.
Posted by: navegante | July 08, 2015 at 12:32
Beaufort ice melting apparently stalled during last half of June due to divergent drift of MYI toward the warm coast.
I wonder if those MYI blocks seemingly resistant to melting will just go poof within the next two weeks too.
Bottom melt is unstoppable given the SST's observed on the Beaufort sea.
Posted by: navegante | July 08, 2015 at 12:44
On the June SIPN thread, Robert S reiterated what many people have been saying for a long time: taken by itself, extent is a pretty ropey metric when it comes to really getting a handle of the loss of sea ice.
Let's face it, extent was basically a warning to navigators, roughly akin to "here be dragons".
There has also been considerable speculation regarding the way area and extent numbers seem to have been behaving of late.
It can be quite educational to look at the way extent and area have varied since the days of the Scanning Multichannel Microwave Radiometer (SMMR). The first SMMR device was on the Nimbus 7 payload, and came into service at the end of October 1978. Along with its various successor devices, such as SSM/I and AMSR, this has provided the basis for most sea ice datasets. (Bremen is the obvious exception, as they also splice in the earlier ESMR data stretching back to 1972.)
Anyway, looking at the entire NSIDC dataset (for both extent and area) from 1979-2014, we can extract the following long-term averages...
Mean difference between March average and September average...
Extent 9.1 million sq kms versus Area 8.86 million sq kms
However, for the most recent decade, 2005-2014 these become...
Extent 9.93 million sq kms versus Area 9.59 million sq kms
The Max <> Min range for extent and area therefore grew by, respectively, 9% and 8%. This is, of course, simply explained by the fact that the autumnal Minimum is dropping faster than the spring Maximum. (A mind-numbingly obvious corollary to this is that the annual winter regrowth between September to March is actually getting bigger. To the arithmetically challenged, this is often used as "evidence" that Arctic sea ice is recovering.)
Irrespective of whether one uses 1979-2014, or 2005-2014, the mean March-September loss in extent exceeded the corresponding loss in area by just 3%.
However, if one focusses on the losses between the June averages and the July averages for the same periods, things could hardly be more different. For the 1979-2014 period, these were...
Extent 2.28 million sq kms versus Area 2.80 million sq kms
In other words, the loss in area actually averages out as 28% HIGHER than the corresponding loss in extent over the June - July period.
Things change again when we look at the last 10 years. Over the 2005-2014 period, these became...
Extent 2.79 million sq kms versus Area 2.90 million sq kms
Although the June - July area loss still exceeds the corresponding extent loss, it now only does so by around 6%, as opposed to the "normal" 28% when the entire dataset is examined.
The reason? The huge extent losses that we have seen during the last 10 years.
The June - July area loss for 2005-2014 exceeded the 1979-2014 value by 5% - a figure roughly comparable to the 8% increase when the corresponding Max - Min (Mar - Sept) figures are considered. However, when we look at June - July extent, rather than area, the 2005-2014 figures exceed the 1979-2014 numbers by a staggering 22%.
I know this is not exactly comparing like with like, but the drop in the NSIDC daily extent figures from 6th June - 6th July 2015 is currently languishing at a mere 1.7 million sq kms. I don't know how to access NSIDC daily area numbers, but the latest 30 day drop in CT area comes to 2.78 million sq kms. (Latest CT date stamp 2015.5123, i.e. Day 187. This therefore includes at least part of the uptick "predicted" by Wipneus in the OP.)
The glaring mismatch between these 30-day figures does tend to suggest that there could just be interesting times ahead.
cheers billf
Posted by: Bill Fothergill | July 08, 2015 at 14:51
Heya - is that your own graph for 2014F? The one on the web has no bottom pinger, and moreover the record stops in mid March.
http://imb.erdc.dren.mil/irid_data/2014F_Plot.png
Posted by: Pjie2 | July 08, 2015 at 15:32
Pjie - No, it's fresh from the ERDC web site, but hidden from view there. The pingers started reporting again after a brief hiatus, but the web site didn't get updated to reflect that fact.
Don't forget to check the thermistor profiles too. More on that shortly, but see the ASIF for some hints!
Posted by: Jim Hunt | July 08, 2015 at 16:34
The IMB processing pipeline has burst back into life after a brief hiatus, and reveals that the floe (or floe + melt pond?) under 2014F is currently 89 cm thick.
Posted by: Jim Hunt | July 08, 2015 at 18:36
It is wrong to assume that open ocean with high SST will induce bottom melting directly
OTOH, it is correct to assume that open ocean with high SSTs will indirectly induce bottom melt by: air absorbing heat by evaporation, South wind transporting that air mass to the top of the ice, and air transferring that heat to the top of the ice.
(right ...?) :-)
Posted by: navegante | July 08, 2015 at 19:26
" ... and air transferring that heat to the top of the ice."
Wouldn't that just be top melting then? ;-)
(Of course, it could just be me being my normal thick self, and misinterpreting what you said.)
Posted by: Bill Fothergill | July 08, 2015 at 21:09
Yes but upon top melting, the surface is sweet water, temp goes up to 0C and a heat flux is established by which the ice starts to acquire a temperature above -1.5C, required for bottom melting. Because there is stratification of salt, the ice being "sweeter' at the top and saltier at the bottom.
Sort of what Jim Hunt plot above shows for most recent date.
It looks to me that it is difficult for the open ocean warm water to reach the bottom except for a limited distance within the ice floe. I think I understood this from a commenter over the forum
Excusr my English
Posted by: navegante | July 08, 2015 at 21:27
I scratch my previous comment. Whatever is what I described, it is "melting from the top", aka top melting.
Still I am not sure whether warm waters such as in Beaufort sea will generate more top melting over the ice floes (by the wind heat transport mechanism I described) or more bottom melting (by direct intrusion or mixing or warm water under the ice)
Posted by: navegante | July 09, 2015 at 10:35
Bottom melt usually starts to overtake surface melt in July. This year 2014F (and other buoys too) reveal an earlier onset than "normal". Compare this year with last for example:
http://GreatWhiteCon.info/resources/ice-mass-balance-buoys/summer-2014-imbs/
Posted by: Jim Hunt | July 09, 2015 at 12:53
A really interesting "tour de data", Bill. I have to find time to dig in more myself.
Posted by: Robert S | July 09, 2015 at 19:35
Cheers Robert.
Your choice of words was seriously spooky, as I am heading off across the Channel tomorrow morning to watch a few stages of le Tour de France.
A bientot
Posted by: Bill Fothergill | July 09, 2015 at 23:39
There are paw prints at the north pole. I know the image will change but they were there when I last looked :)
http://psc.apl.washington.edu/northpole/NPEO2015/2015cam2_1.jpg
Posted by: Kate | July 10, 2015 at 09:29
Thanks Kate. Here's the archived version:
ftp://northpoleftp.apl.washington.edu/NPEO_2015_Accumulating_Webcam_Images/NPEO_2015_WebCam%232/npeo_camera2_20150709175613.jpg
Of course the camera is not actually at the North Pole. Current cam position is 86.65 N, 3.86 W, where the air temperature is currently 2.24 C.
Once upon a time a buoycam actually snapped a bear!
http://GreatWhiteCon.info/resources/arctic-sea-ice-images/summer-2013-images/#OBuoy7
Posted by: Jim Hunt | July 10, 2015 at 11:03
Are those paw prints, or foot prints that were snowed over and are now revealed again as the snow melts?
Posted by: Neven | July 10, 2015 at 11:24
Neven - If you go the archive and look at the previous picture those prints were nowhere to be seen.
Given that they're recent do you suppose they are animal, human or alien?
Posted by: Jim Hunt | July 10, 2015 at 13:47
They must be alien, Jim, because an animal would just walk around and not only in paths between the various devices. :-P
Posted by: Neven | July 10, 2015 at 14:02
Can you tell what kind of alien?
Posted by: Lennartvdl | July 10, 2015 at 15:43
An alien wearing human shoes.
Posted by: Neven | July 10, 2015 at 15:43
o-oh...
Posted by: Lennartvdl | July 10, 2015 at 16:52
@Jim, it sounds better when you say 'north pole' hehehe
and it's not an alien, it's SANTA!
Posted by: Kate | July 10, 2015 at 23:41
Sorry to disappoint the alien advocates and Santa devotees, but my guess is definitely polar bear. At this distance, and with low resolution, polar bear footprints would look similar to a human's (or an alien wearing human shoes, or Santa for that matter), especially in slush that doesn't retain details. And a polar bear would not just wander around aimlessly. It would walk in an efficient path to the objects that looked and smelled most interesting. Like a human, it would carefully walk between objects. As soon as it determined there was nothing of importance (most importantly, something to eat), it would continue on its way.
Posted by: Jenny E. Ross | July 12, 2015 at 00:50
I just remembered an instance in the past couple of years where we also thought it were paw prints and then it turned out that they were human footprints revealed by the melting snow. This current image looked similar to me like that, but it might be ice bear prints.
Edit: Polar bear prints. Dutch word for polar bear is 'ijsbeer'.
Posted by: Neven | July 12, 2015 at 10:36
Everyone, there's still a couple of hours left to vote or change your vote on the NSIDC 2015 Arctic SIE September minimum: July poll. Let's make it 100 voters again!
Posted by: Neven | July 12, 2015 at 11:25
I don't think there can be any argument about these prints from earlier in the year:
http://GreatWhiteCon.info/resources/arctic-sea-ice-images/winter-201415-images/#IMB2015A
Click the image for a closer look
Posted by: Jim Hunt | July 12, 2015 at 12:09
Well either that or someone was wearing extremely interesting shoes.... ;-)
Posted by: NeilT | July 15, 2015 at 00:06
